Product Overview
Our modular high-strength energy storage battery box is a core structural solution specifically designed for commercial, industrial and utility-grade energy storage systems. It integrates robust protection, efficient thermal management, intelligent monitoring and flexible expansion, providing the best environment for safe, reliable and long-lasting operation of lithium-ion batteries and other advanced battery technologies. This product is a key component for building the future sustainable energy infrastructure.
Core advantages and characteristics
1. Outstanding safety and structural integrity
Military-grade protection: The box body is made of high-strength aluminized steel plate or corrosion-resistant aluminum alloy, and undergoes precise stamping and welding processes. It has an IP65 protection level and can effectively resist dust, water column intrusion and harsh weather conditions.
All-round safety design: Built-in pressure relief explosion-proof valve, which can release pressure and exhaust gas in a targeted manner when the battery experiences thermal runaway. The structure has passed strict impact, vibration and compression tests (in compliance with UL/IEC relevant standards) to ensure the safety of occupants and equipment in extreme conditions.
Passive fire prevention and insulation: It integrates fireproof partitions and high flame-retardant insulating materials internally, effectively isolating the battery cell modules and delaying the spread of fire.
2. Intelligent and efficient thermal management system
Active liquid cooling/air cooling options: We offer an integrated solution of an efficient liquid cooling plate or an intelligent air duct design to ensure that the battery pack operates within the optimal temperature range (typically 15°C-35°C), with a temperature difference controlled within ±3°C, significantly extending battery life and enhancing charging and discharging efficiency.
Environmental adaptability: The system can intelligently adjust the cooling power based on the external environmental temperature and the internal cell temperature to achieve optimal energy efficiency.
3. Modular and scalable design

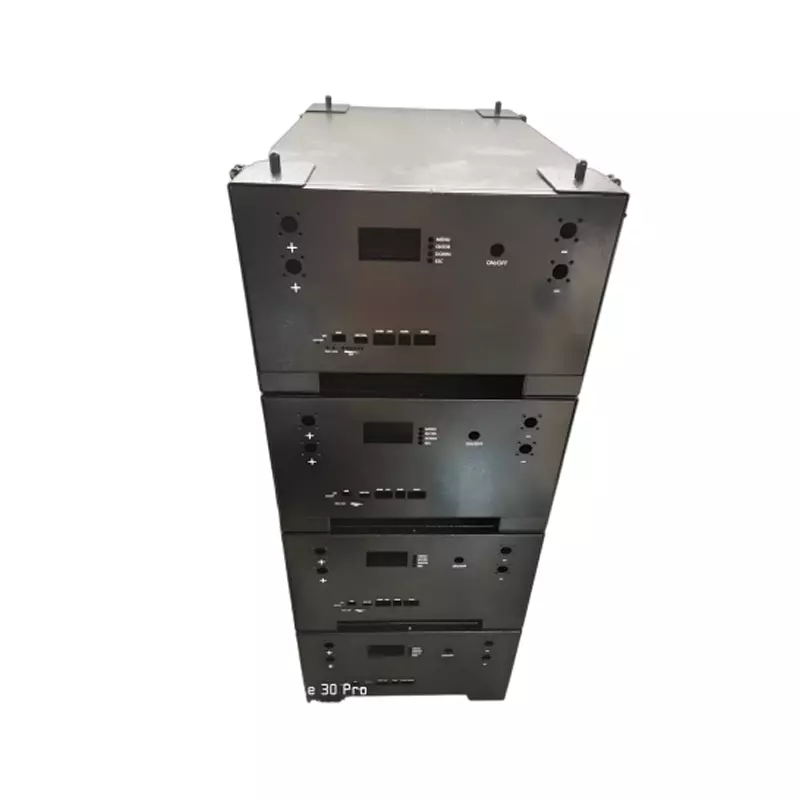

Flexible configuration: The standardized module design supports both horizontal and vertical stacking, allowing customers to easily expand the energy storage system based on capacity requirements (from hundreds of kilowatt-hours to megawatt-hours).
Easy to install and maintain: The front maintenance or top cover opening design simplifies the installation, wiring and subsequent maintenance process of the battery module, reducing the total life cycle cost.
4. Integrated intelligent monitoring platform
Comprehensive status perception: Pre-installed sensors can monitor the temperature, humidity, smoke, gas concentration and insulation resistance inside the box in real time.
Digital twin interface: Equipped with standard communication interfaces (such as CAN bus, Ethernet), it can seamlessly connect all data to the battery management system and the upper-level energy management system, achieving remote monitoring, fault diagnosis and early warning.
5. Environmental adaptation and sustainability
Wide temperature range operation: Specially designed to adapt to a wide range of ambient temperatures from -30°C to 50°C.
Environmental protection and sustainability: Material selection complies with the RoHS Directive, and the design takes recyclability into account, helping customers achieve their green and sustainable development goals.
Technical Specifications (Example)
Standard size: Customized design, commonly available in 19-inch / 30-inch rack compatible or container types.
Protection grade: IP65 (standard), higher grades can be customized.
Cooling method: Forced air cooling/liquid cooling (optional).
Structural material: High-strength steel / 6061-T6 aluminum alloy, surface anti-corrosion treatment (powder coating or galvanizing).
Electrical safety: Insulation resistance > 10 MΩ, grounding continuity complies with IEC standards.
Communication interface: CAN 2.0B/Ethernet/RS485 (optional).
Certification: We can conduct relevant certification tests such as UL, IEC, and UN38.3 according to customer requirements.
Application scenarios
Grid-side energy storage (peak shaving and frequency regulation, smooth access of renewable energy)
Commercial and industrial energy storage (peak shaving and valley filling, backup power supply, demand management)
Solar and wind power generation are stored in conjunction
Charging station buffer energy storage
Remote and off-grid power supply systems
Value proposition
By choosing our energy storage battery box, you not only obtain a sturdy container, but also invest in the foundation of a safe, reliable, intelligent, efficient and future-oriented energy storage system. We are committed to maximizing the value of your battery assets through top-notch engineering design and manufacturing quality, ensuring the safe and stable operation of energy storage power stations for more than 20 years.
